Modify Layout on product page

I use Joomla 2.5.6, Hikashop 1.5.8 and a template generated with Artisteer 3.1

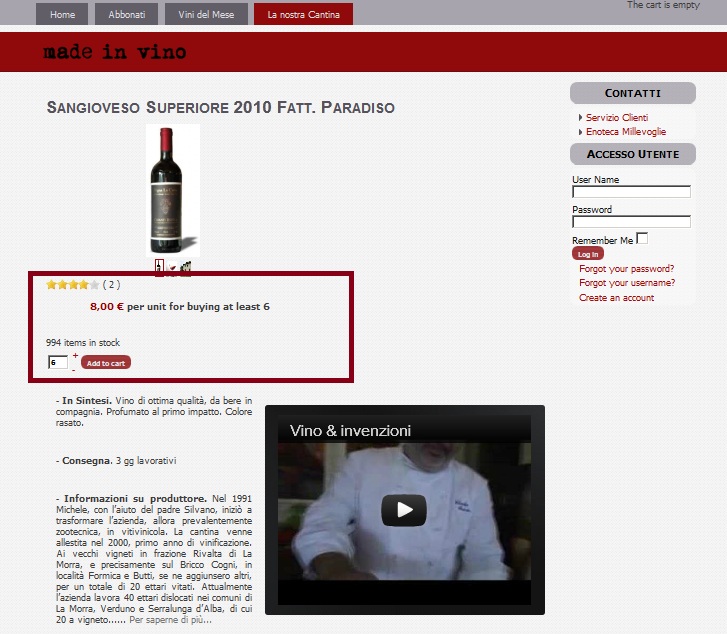

My product page doesn't look very well.
Probably due to some space constraints (the product page has about 750/800 px) the "right part" goes under the "left part".
Is there a way to avoid it?

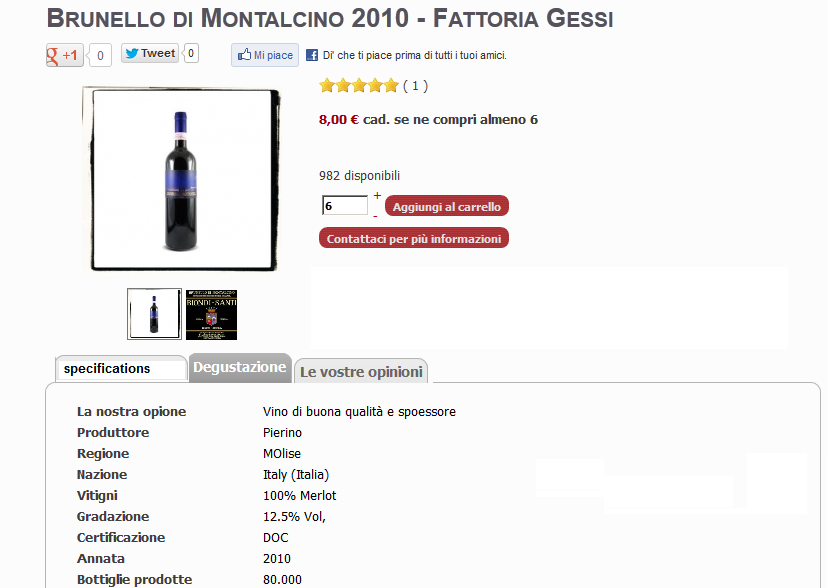

I would also to customize a little bit the product layout page in order to obtain this result (all the fields alligned on the left). Is it possibile?

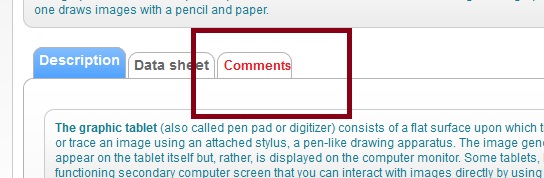

I would also like to know if is possible to view the comment in a separate tab?



Thank you so much for your help.

Hi,

For the right area going under the image, you can look here:
www.hikashop.com/en/forum/4-how-to/48858...t-inconsistency.html

For the price alignement, you can look here:
www.hikashop.com/en/forum/2-general-talk...uct-detail-page.html

For the tabs, you will have to do something similar to this:
www.hikashop.com/fr/forum/4-how-to/52260...on-product-page.html

Thank you as always, with your help everything seems simple also for me!!!

I was able to modify the first 2 things but I have some problem with the last one.

I modified the product / show_default.php as follow

<div id="hikashop_product_bottom_part" class="hikashop_product_bottom_part">
{tab=Tab Title 1}
<div id="hikashop_product_description_main" class="hikashop_product_description_main">
<?php
echo JHTML::_('content.prepare',preg_replace('#<hr *id="system-readmore" */>#i','',$this->element->product_description));
?>
</div>
<span id="hikashop_product_url_main" class="hikashop_product_url_main">
<?php
if (!empty ($this->element->product_url)) {
echo JText :: sprintf('MANUFACTURER_URL', '<a href="' . $this->element->product_url . '" target="_blank">' . $this->element->product_url . '</a>');
}
?>
</span>
{tab=Tab Title 2}
<?php
$this->setLayout('show_block_product_files');
echo $this->loadTemplate();
?>
<div id="hikashop_product_vote_listing" class="hikashop_product_vote_listing">
<?php
if($this->params->get('show_vote_product')){
$js = '';
$params = null; //Params already existing in the previous getLayout('vote', ...)
echo hikashop_getLayout('vote', 'listing', $params, $js);
?>
</div>
<div id="hikashop_product_vote_form" class="hikashop_product_vote_form">
<?php
$js = '';
$params = null;
echo hikashop_getLayout('vote', 'form', $params, $js);
}
?>
</div>
{/tabs}
</div>

i also modified the product / show.php as follow

<form action="<?php echo hikashop_completeLink('product&task=updatecart'); ?>" method="post" name="hikashop_product_form" enctype="multipart/form-data">
<?php
$this->setLayout($this->productlayout);
/*
Old code - Stefano
echo $this->loadTemplate();
*/
echo JHTML::_('content.prepare',$this->loadTemplate());?>

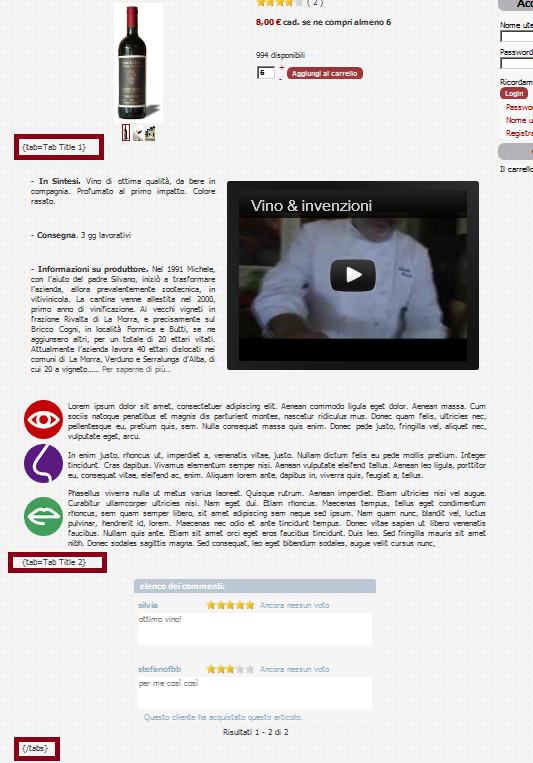

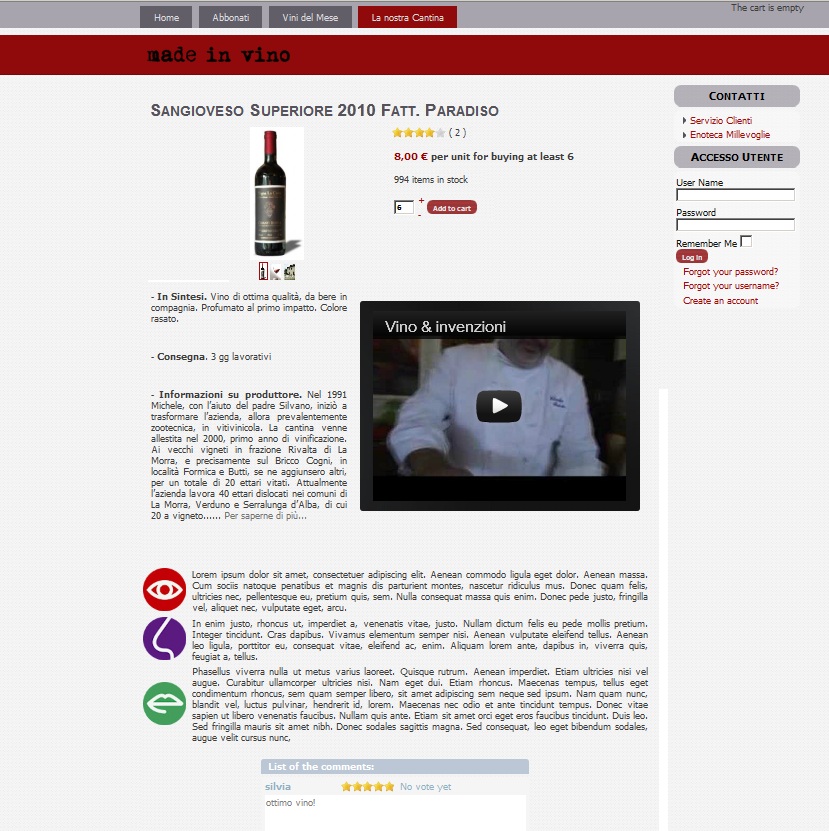

but unfortunately it doen't work, did i miss something?

I would say that the problem is that the second view file modification you made (in product/show.php) was not for the correct template. Could you double check that ?

I checked the situation and I confirm I modified the right template "templatesemplicev3".

I thought it depends by the Template (it is a custom template made with Artisteer 3.1) but with the default Joomla template (Beez2) I have the same problem.

Do you have other ideas?
If you want I may privately send you the URL, username and password to check the site backend.

Yes. Please provide that via our contact form with a link to that thread:
www.hikashop.com/en/contact-us.html

Thank you really much!

I sent to you all the information needed.
I'm really curious to know the reason because it doesn't work.

You didn't install and publish the tabber plugin:
extensions.joomla.org/extensions/news-di.../articles-tabs/14493

I apologize, I hadn't done the most important thing... :blush: :blush: :blush:

Thanks a lot

Hello nicolas

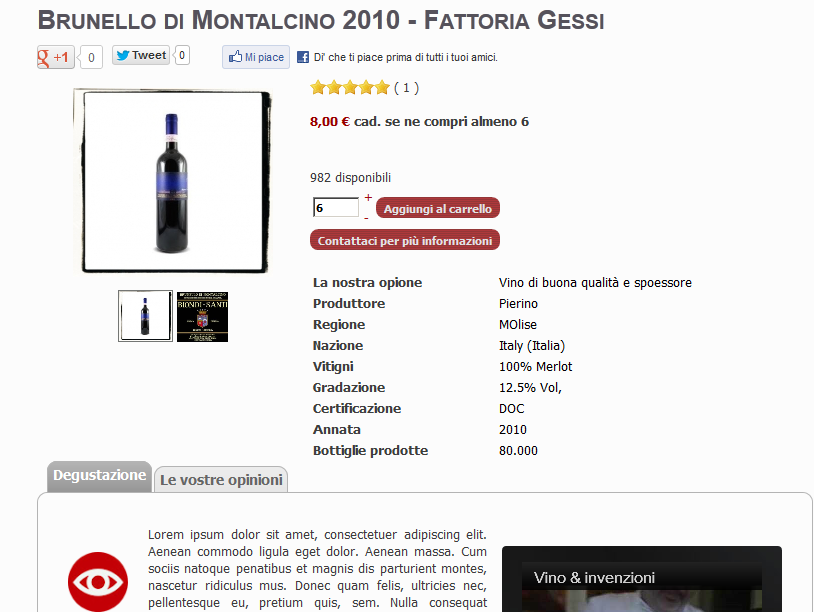

do you think is possbile to move the "specificatons fields" to a separate TAB?



Could you indicate what piece of code I have to move/change?

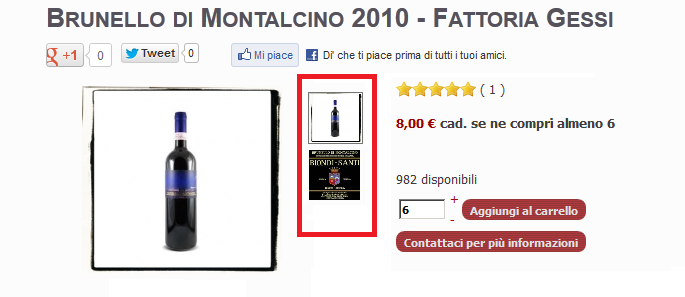

Could you also indicate if is possible to move the small product image at the right of the main picture?



Thank you

That's the code used to display the specifications area in your view file :
if(!empty($this->fields)){
$this->setLayout('show_block_custom_main');
echo $this->loadTemplate();
}

Just move it inside your tab tags with potentially <?php and ?> tags around it and it will be in the tabs.

Thank You!!!

I did it, I also had to move that part in the bottom area

<div id="hikashop_product_bottom_part" class="hikashop_product_bottom_part">

<?php // Stefano Start - Le 5 righe di cui sopra sono state spostate qui ed è stata aggiunta la stringa per abilitare la TAB?>
<?php
if(!empty($this->fields)){
?> {tab=Caratteristiche|grey} <?php
$this->setLayout('show_block_custom_main');
echo $this->loadTemplate();
}
?>
<?php // Stefano End ?>

I'm falling in love with Hikashop!!! :laugh: :laugh:

Do you know if is possible to move the small picture of the product to the right of the image? (see my previous message).

Thanks as usual!

You can do that with CSS. You might need to adapt the values a bit but you should be able to do it with that CSS:
.hikashop_main_image_div{
width: 60%;
float: left;
}

.hikashop_small_image_div{
width: 20%;
float: right;
}

Great!!!!! :laugh: :laugh:

I swear this is my last question...

how could I set a fix width for the name of the custom fields?

I tried to insert a margin in .hikashop_product_custom_name but the space is different between the varoius products

.hikashop_product_custom_name{
font-weight:bold;
/* Stefano Start */
/* Spazi per caratteristiche */
margin-right:50px;
/* Stefano End */
}

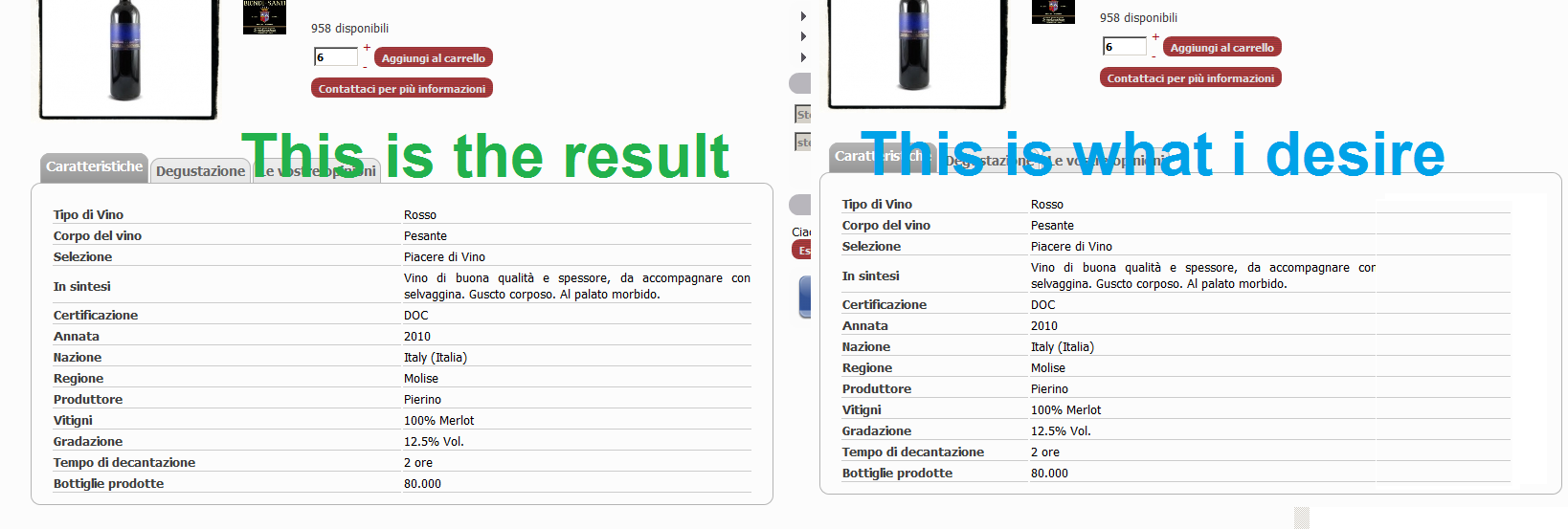

I would like to have the same width and different height depending on the content of the relative field.

I think that you should use something like that CSS:
#hikashop_product_custom_info_main td.key{ width 100px; }

Thank you, unfortunately it works only partially.

when you set a width the system automatically splits the table in 2 parts of the same width.

I tried to increase/decrease the pixels and also to use the % but it isn't possible to set the left part and the right part with different width.

Can you give a link to that page so that we can see that ?

www.madeinvino.com/index.php/la-nostra-c...-fattoria-gessi.html

the web site is www.madeinvino.com
go to "La nostra cantina"
and the choose a product.

thanks

You added the CSS:
#hikashop_product_custom_info_main td{
border-bottom: 1px solid #CCC;
width: 100px;
}

but I told you to add:
#hikashop_product_custom_info_main td.key {
width: 100px;
}

That's why it's not working like you want.

.... :blush:
Thank you!
