responsive template hikashop images not resizing

  • Posts: 61
  • Thank you received: 0
10 years 10 months ago #138608

-- url of the page with the problem -- : cepedabaseball.com/store/product/852-hoodie
-- HikaShop version -- : com_hikashop_business_2.2.3_2013-12-23.tar
-- Joomla version -- : 2.5.17
-- PHP version -- : 5.3.5
-- Browser(s) name and version -- : Version 31.0.1650.63
-- Error-message(debug-mod must be tuned on) -- : Error reporting is set to maximum and there is nothing to see

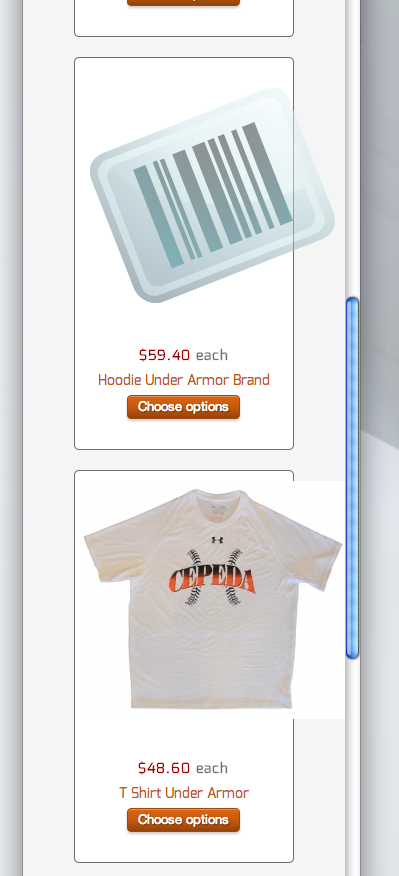

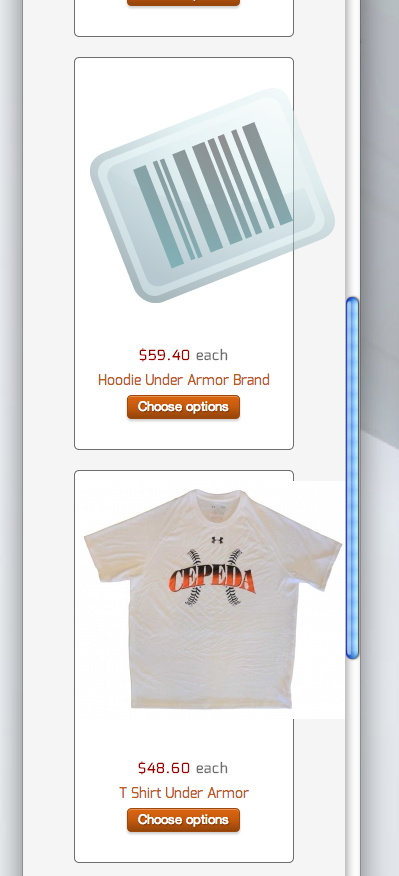

The template I am using is by rockettheme called Rt_chapelco, and it is responsive and using bootstrap. The images throughout the site change size automatically at the brows changes size but not in the hikashop store. I have enabled the Use bootstrap design radio button in the display tab of the configuration, is there something else I am missing? Why don't the images change size in the store section of the site?
cepedabaseball.com/store

Attachments:

Please Log in or Create an account to join the conversation.

  • Posts: 13201
  • Thank you received: 2322
10 years 10 months ago #138670

Hi,

The given urls are not correct, it gives me 404 errors.

Thanks to look with your browser console the html code to see if the image size in forced in px.
If it's the case, you can use css properties to override that and set it in %.

hikashop.com/support/153.html

Please Log in or Create an account to join the conversation.

  • Posts: 61
  • Thank you received: 0
10 years 10 months ago #138738

i turned the menu items off after i did not hear back for a while. They are on now.

Please Log in or Create an account to join the conversation.

  • Posts: 13201
  • Thank you received: 2322
10 years 10 months ago #138807

Hi,

Thanks to try the following css property in your template file or in the hikashop frontend css file:

.hikashop_product_image_subdiv{ width: auto !important; }

Please Log in or Create an account to join the conversation.

  • Posts: 32
  • Thank you received: 0
7 years 8 months ago #264569

Hi all,

I actually have this exact issue and the CSS change suggested hasn't worked. Responsiveness is so important.

How can I fix this?

Thanks

Please Log in or Create an account to join the conversation.

  • Posts: 82906
  • Thank you received: 13378
  • MODERATOR
7 years 8 months ago #264574

Hi,

Please provide a link to the page with the issue so that we can see what you're talking about.

Please Log in or Create an account to join the conversation.

  • Posts: 32
  • Thank you received: 0
7 years 8 months ago #264662

The problem is on a product page:

www.stsdrapes.co.uk/shop-online/product/8-black-bolton-twill

As the page gets narrower the pricing and add to cart button overlaps the image for some time until it eventually moves to underneath the image. This happens on my mobile in a horizontal position.

On a mobile in the vertical position, the image goes off the right hand side of the screen because the width hasn't resized.

Thanks

Please Log in or Create an account to join the conversation.

  • Posts: 12953
  • Thank you received: 1778
7 years 8 months ago #264669

Hello,

In your case the solution will probably be to directly use some CSS code like media queries :

You can do the modifications in the frontend css file via the menu Configuration > Display > CSS
Use the @media tags to change the width of the columns when the width of the page is less than xx.

ex:
@media (min-width: 992px)
.hkc-md-4 {
width: 33.33333333%;
}

Here is some documentation about the layout customization:
www.hikashop.com/support/documentation/1...ize-the-display.html

Please Log in or Create an account to join the conversation.

  • Posts: 32
  • Thank you received: 0
7 years 8 months ago #264858

Thanks Mohamed, I was hoping that those sorts of changed wouldn't be required.

,Responsiveness is so important these days how come this isn't part of Hikashop? We're in a 'mobile first' era .

Thanks

Please Log in or Create an account to join the conversation.

  • Posts: 4753
  • Thank you received: 644
  • MODERATOR
7 years 8 months ago #264865

Hello,

You're right responsiveness is an important criteria for modern e-shop, and in mine mind HikaShop integretaed this specification.
So, can you check in your Item Menu configuration, if you have some image size configuration ?

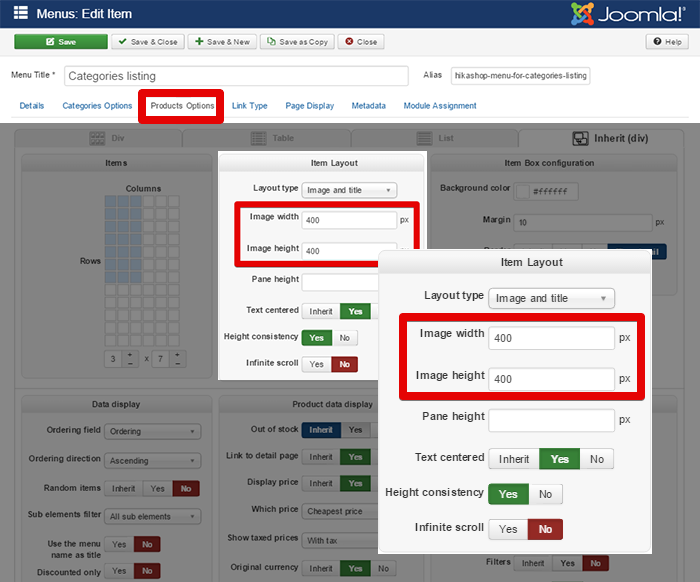

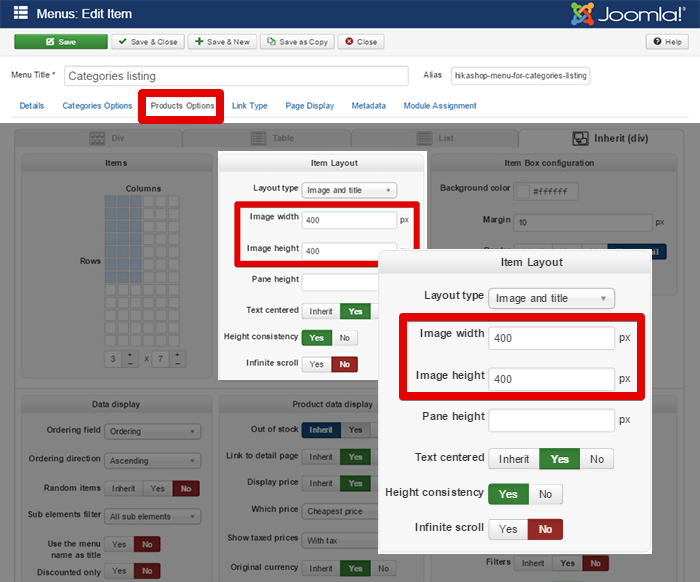

In Menus => Main Menu, and select your concerned listing, then go in Products Options tab :



Here, if you have some size configuration that will "break" HikaShop responsiveness, and so maybe add Css order won't be required.
Awaiting news from you.

Regards

Attachments:
Last edit: 7 years 8 months ago by Philip.

Please Log in or Create an account to join the conversation.

  • Posts: 32
  • Thank you received: 0
7 years 8 months ago #264986

Thanks so much for your detailed response. Both of those size boxes are empty. I have noticed, though, that there is an element style applied to the image which is setting the width manually - I must have missed that before. I'll track that down, get rid of it and get back to you.

Thanks.

Please Log in or Create an account to join the conversation.

  • Posts: 32
  • Thank you received: 0
7 years 8 months ago #264994

This line seems to be thew problem:

<div style="position:relative;text-align:center;clear:both;<?php if(!empty($divWidth)){ echo 'width:'.$divWidth.'px;'; } ?>margin: auto;" class="hikashop_product_main_image_subdiv">

it's in product/show_block_img. This file was still the original according to Hikashop.

I have removed the section about width but it actually doesn't make any difference to the front end when viewed on mobile.

Please Log in or Create an account to join the conversation.

  • Posts: 26159
  • Thank you received: 4028
  • MODERATOR
7 years 8 months ago #265015

Hello,

Specifying a width on an element is not problematic knowing that responsive rules will add something to the "max-width" so if the image is too big for the device, the max-width will "override" the width.

Regards,


Jerome - Obsidev.com
HikaMarket & HikaSerial developer / HikaShop core dev team.

Also helping the HikaShop support team when having some time or couldn't sleep.
By the way, do not send me private message, use the "contact us" form instead.

Please Log in or Create an account to join the conversation.
