custom field image display

-- HikaShop version -- : 2.4.0
-- Joomla version -- : 3.3.6
-- PHP version -- : 4.39-0+deb7u2
-- Browser(s) name and version -- : Chrome 42.0.2311.135 m

Hi Guys

On the front end I have 7 custom fields under the product specifications which i would like to display with an custom image rather than how it is currently set to display as a single drop down. Is this possible?

Thanks

Hello,
What do you exactly mean by "custom image", can you give me more information about what do you exactly want to do through some screenshots ?
Also checking that documentation will probably help you : www.hikashop.com/support/documentation/1...-display.html#layout

Hi Mohamed

Thanks for your response.

If you view the link here . Now at the bottom in the specifications you will see 7 drop downs each labelled and has a number assigned to it. We would like to use images which display the different pressures rather than numbers.

Thanks

Hi Nicolas

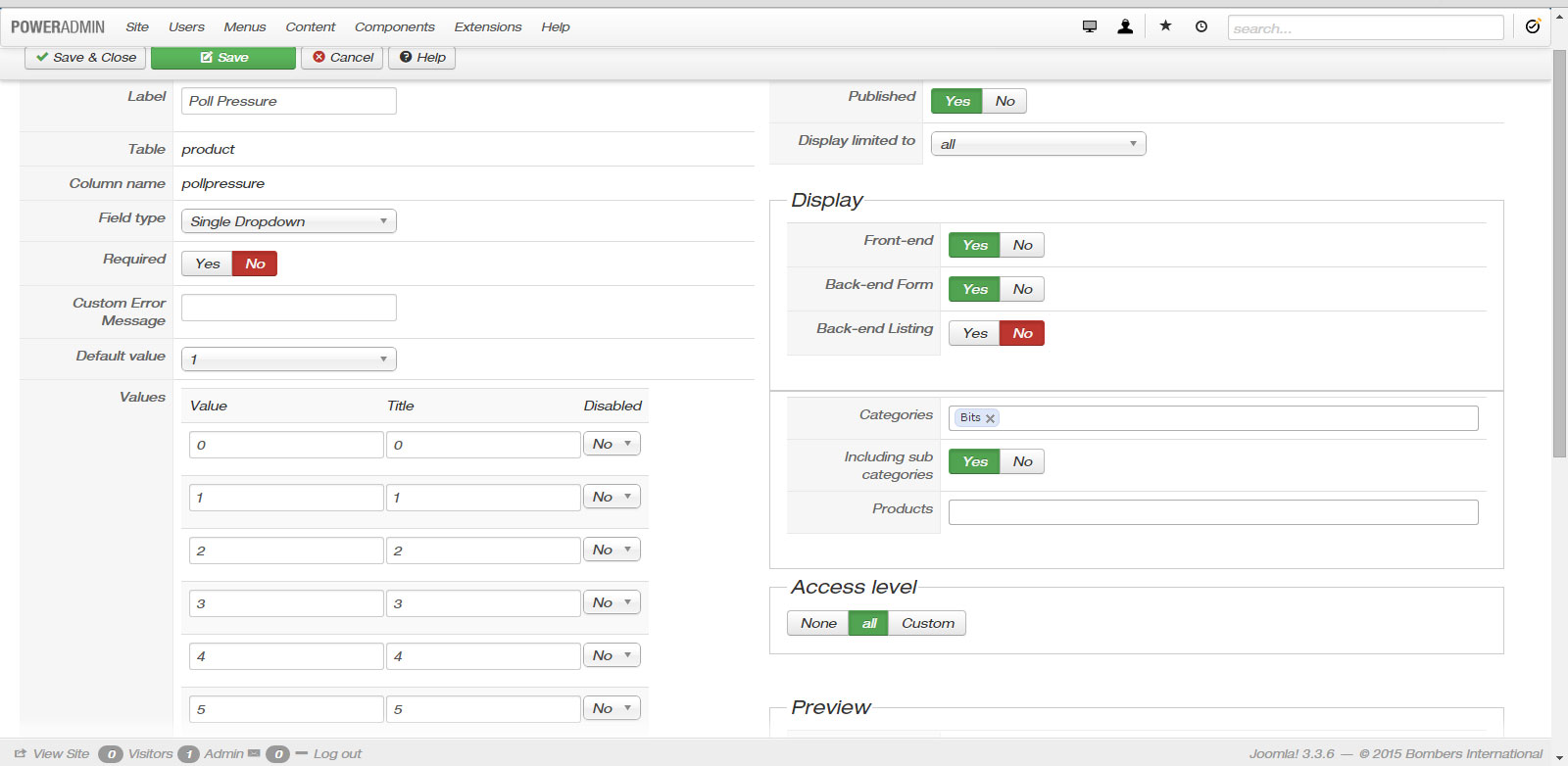

Please find attached the screengrab.

Thanks

Once again you are the man, thanks so much Nicolas. Works like a charm!

Hi Nicolas

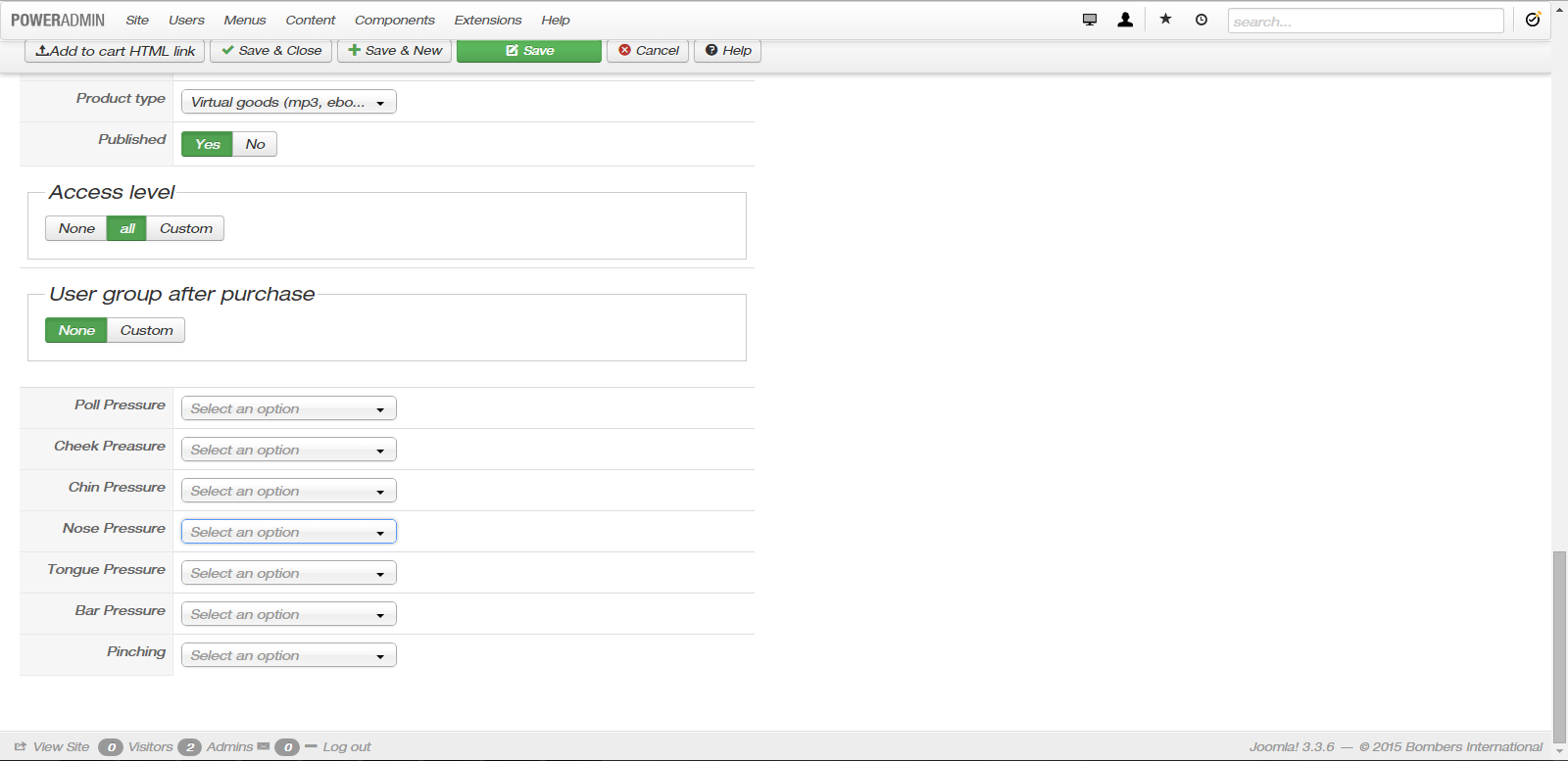

There seems to be an issue with the fix you suggested. When i am in the back end editing a product i cannot configure the drop downs so it displays the correct image. The dropdowns are grey-ed out, please see image attached.

Many Thanks

Hi,

Please edit the file "administrator/components/com_hikashop/classes/field.php" and replace the functions "trans()" by:

	function trans($name) {
		//We use JText if there is only uppercase or underscore char
		$val = preg_replace('#[^a-z0-9]#i','_',strtoupper($name));

		//We use JText on backend only if there is no html tags in the translation
		$app = JFactory::getApplication();
		if($app->isAdmin() && strcmp(JText::_($val), strip_tags(JText::_($val))) !== 0)
			$trans = $val;
		else
			$trans = JText::_($val);

		if($val == $trans)
			$trans = $name;
		return $trans;
	}

Thanks Xavier your fix works.

Such awesome support ... Keep it up lads

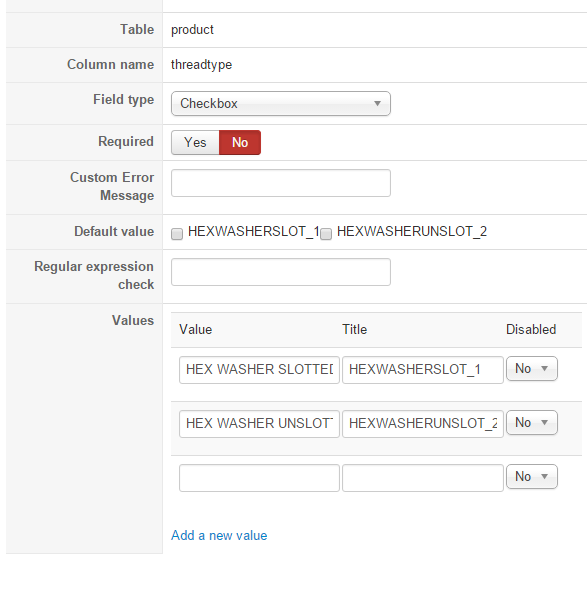

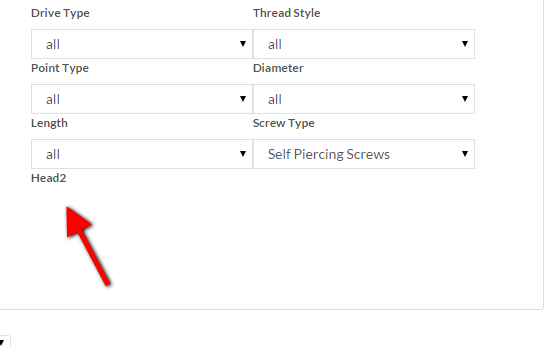

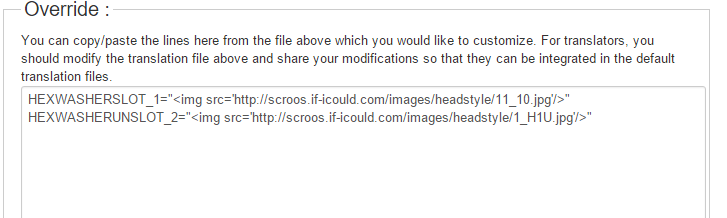

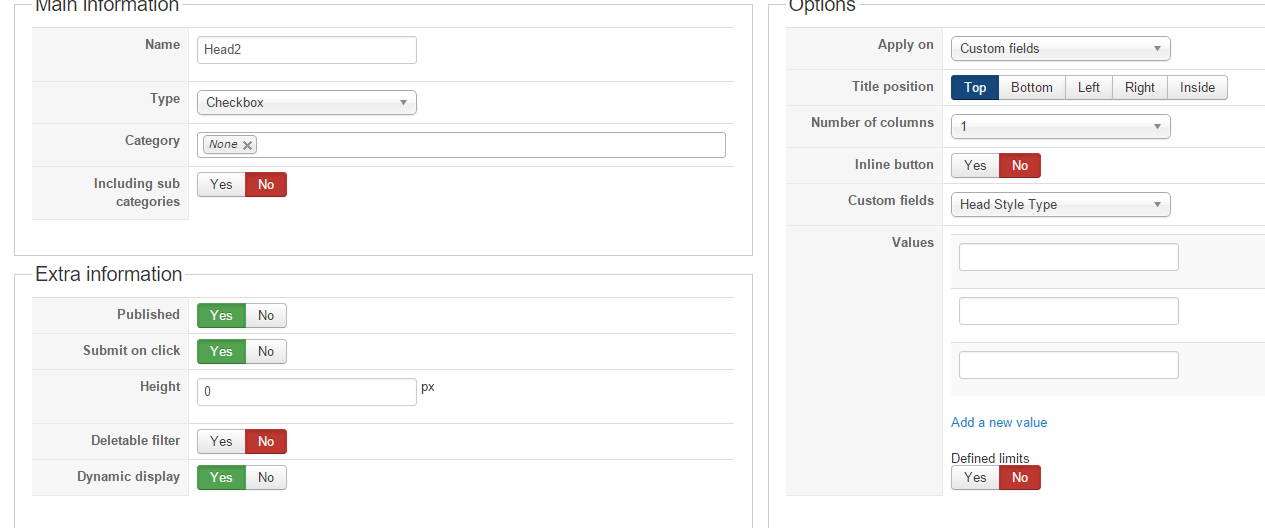

I tired this method you describe -- hoping that the images would show up in a filter for the custom field. But no joy -- get no images in the filter. Is there something I'm missing? the value keynames in the title. See attached.. and then I edited language file. But get nothing in the filter.

Here is the site -- it's the dev site.. the last filter

scroos.if-icould.com/index.php/buy-screw...ilter_ScrewType_2=24

Hello,
I am having this problem as well. I can see the image if I set the custom field to Radio Button but when I change it to Single Dropdown, I can only see a grey box on the front end.

Can you please help me figure out how to make this update?
Thank you!
Amanda
