Facebook Pixel Not Adding Products Due To Missing Microdata

  • Posts: 130
  • Thank you received: 6
4 months 4 days ago #362684

-- HikaShop version -- : 5.1.0
-- Joomla version -- : 5.1.2
-- PHP version -- : 8

Hello,

I am wanting to automate how products are added to Facebook catalog using the Facebook pixel which will add products based off Microdata. I am getting errors that ID, availability & price are missing and I'm just not sure what I'm missing or what I need to to tweak on the backend to make sure all is correct so that the pixel can see all the needed microdata.

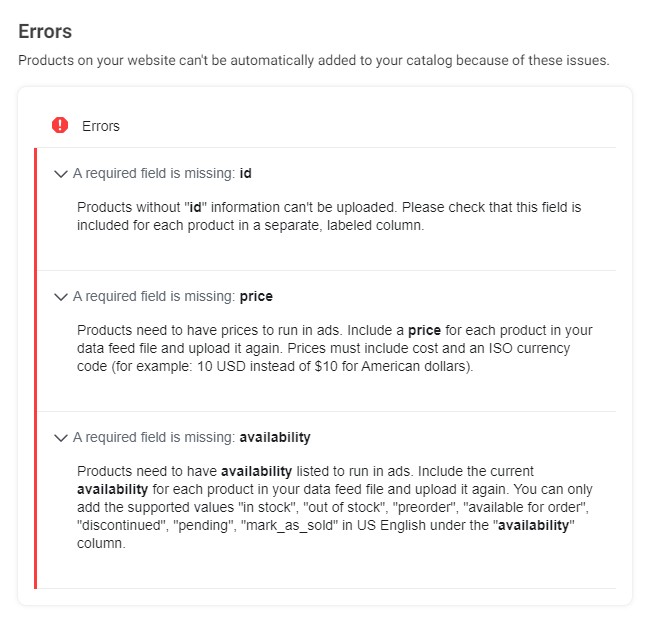

Here is the error for one of the product pages I tested using Facebook Microdata Debug Tool:

Attachments:

Please Log in or Create an account to join the conversation.

  • Posts: 83007
  • Thank you received: 13398
  • MODERATOR
4 months 3 days ago #362688

Hi,

The issue you have is that you're missing the microdata in the product view files.
It seems that the product page layout view files on your website have been customized based on an old version of HikaShop which doesn't include the schema.org tags.
For example, if you edit the view file product / show_default via the menu Display>Views, you normally have this line of code which adds the id :

<meta itemprop="productID" content="<?php echo $this->element->product_code; ?>">
so normally, Facebook shouldn't complain about it missing. However, I can see that this meta tag is not on your product details pages, so I'm assuming it is due to a previous customization.

Please Log in or Create an account to join the conversation.

  • Posts: 130
  • Thank you received: 6
4 months 3 days ago #362689

Thanks so much, I added some customization due to the default layout not looking good. I have removed the customization from that php file and cleared server cache but still getting same errors in microdata checker tool.

Please Log in or Create an account to join the conversation.

  • Posts: 83007
  • Thank you received: 13398
  • MODERATOR
4 months 3 days ago #362690

Hi,

I still don't see the meta tag with productID in the HTML of a product page.
Can you check the code of the product / show_default view file ? It should have the line I mentioned in my previous message.

Please Log in or Create an account to join the conversation.

  • Posts: 130
  • Thank you received: 6
4 months 3 days ago #362699

After clicking the remove customization button do I need to reinstall Hikashop to make sure this file has the latest code that includes the meta tag or does the meta tag have to be added manually no matter what? Thanks

Please Log in or Create an account to join the conversation.

  • Posts: 83007
  • Thank you received: 13398
  • MODERATOR
4 months 3 days ago #362703

Hi,

No, you don't need to reinstall HikaShop. You'll have the latest code with this line once you remove the customization. You can always recustomize the view after it.

Please Log in or Create an account to join the conversation.

  • Posts: 130
  • Thank you received: 6
4 months 2 days ago #362711

This is what is showing in the show_default.php page after removing customization

<?php
/**
 * @package	HikaShop for Joomla!
 * @version	5.1.0
 * @author	hikashop.com
 * @copyright	(C) 2010-2024 HIKARI SOFTWARE. All rights reserved.
 * @license	GNU/GPLv3 http://www.gnu.org/licenses/gpl-3.0.html
 */
defined('_JEXEC') or die('Restricted access');
?><?php
	$form = ',0';
	if(!$this->config->get('ajax_add_to_cart', 1)) {
		$form = ',\'hikashop_product_form\'';
	}
?>
<div id="hikashop_product_top_part" class="hikashop_product_top_part">
<!-- TOP BEGIN EXTRA DATA -->
<?php if(!empty($this->element->extraData->topBegin)) { echo implode("\r\n",$this->element->extraData->topBegin); } ?>
<!-- EO TOP BEGIN EXTRA DATA -->
	<h1>
<!-- NAME -->
		<span id="hikashop_product_name_main" class="hikashop_product_name_main" itemprop="name"><?php
			if(hikashop_getCID('product_id') != $this->element->product_id && isset($this->element->main->product_name))
				echo $this->element->main->product_name;
			else
				echo $this->element->product_name;
		?></span>
<!-- EO NAME -->
<!-- CODE -->
<?php if ($this->config->get('show_code')) { ?>
		<span id="hikashop_product_code_main" class="hikashop_product_code_main"><?php
			echo $this->element->product_code;
		?></span>
<?php } ?>
<!-- EO CODE -->
		<meta itemprop="sku" content="<?php echo $this->element->product_code; ?>">
		<meta itemprop="productID" content="<?php echo $this->element->product_code; ?>">
	</h1>
<!-- TOP END EXTRA DATA -->
<?php if(!empty($this->element->extraData->topEnd)) { echo implode("\r\n", $this->element->extraData->topEnd); } ?>
<!-- EO TOP END EXTRA DATA -->
<!-- SOCIAL NETWORKS -->
<?php
	$this->setLayout('show_block_social');
	echo $this->loadTemplate();
?>
<!-- EO SOCIAL NETWORKS -->
</div>

<div class="hk-row-fluid">
	<div id="hikashop_product_left_part" class="hikashop_product_left_part hkc-md-6">
<!-- LEFT BEGIN EXTRA DATA -->
<?php if(!empty($this->element->extraData->leftBegin)) { echo implode("\r\n",$this->element->extraData->leftBegin); } ?>
<!-- EO LEFT BEGIN EXTRA DATA -->
<!-- IMAGE -->
<?php
	$this->row =& $this->element;
	$this->setLayout('show_block_img');
	echo $this->loadTemplate();
?>
<!-- EO IMAGE -->
<!-- LEFT END EXTRA DATA -->
<?php if(!empty($this->element->extraData->leftEnd)) { echo implode("\r\n",$this->element->extraData->leftEnd); } ?>
<!-- EO LEFT END EXTRA DATA -->
	</div>

	<div id="hikashop_product_right_part" class="hikashop_product_right_part hkc-md-6">
<!-- RIGHT BEGIN EXTRA DATA -->
<?php if(!empty($this->element->extraData->rightBegin)) { echo implode("\r\n",$this->element->extraData->rightBegin); } ?>
<!-- EO RIGHT BEGIN EXTRA DATA -->
<!-- VOTE -->
		<div id="hikashop_product_vote_mini" class="hikashop_product_vote_mini"><?php
	if($this->params->get('show_vote_product')) {
		$js = '';
		$this->params->set('vote_type', 'product');
		$this->params->set('vote_ref_id', isset($this->element->main) ? (int)$this->element->main->product_id : (int)$this->element->product_id );
		echo hikashop_getLayout('vote', 'mini', $this->params, $js);
	}
		?></div>
<!-- EO VOTE -->
<!-- PRICE -->
<?php
	$itemprop_offer = 'itemprop="offers" itemscope itemtype="https://schema.org/Offer"';
?>
		<span id="hikashop_product_price_main" class="hikashop_product_price_main" <?php echo $itemprop_offer; ?>>
<?php
	$main =& $this->element;
	if(!empty($this->element->main))
		$main =& $this->element->main;
	if(!empty($main->product_condition) && !empty($this->element->prices)) {
?>
			<meta itemprop="itemCondition" itemtype="https://schema.org/OfferItemCondition" content="https://schema.org/<?php echo $main->product_condition; ?>" />
<?php
	}
	if($this->params->get('show_price') && (empty($this->displayVariants['prices']) || $this->params->get('characteristic_display') != 'list')) {
		$this->row =& $this->element;
		$this->setLayout('listing_price');
		echo $this->loadTemplate();

		$price = 0;
		if (!empty($this->element->prices)) {
			$price = $this->itemprop_price;
		}
	}
		?>	<meta itemprop="price" content="<?php echo $price; ?>" />
			<meta itemprop="availability" content="https://schema.org/<?php echo ($this->row->product_quantity != 0) ? 'InStock' : 'OutOfstock' ;?>" />
			<meta itemprop="priceCurrency" content="<?php echo $this->currency->currency_code; ?>" />
		</span>
<!-- EO PRICE -->
<!-- RIGHT MIDDLE EXTRA DATA -->
<?php if(!empty($this->element->extraData->rightMiddle)) { echo implode("\r\n",$this->element->extraData->rightMiddle); } ?>
<!-- EO RIGHT MIDDLE EXTRA DATA -->
<!-- DIMENSIONS -->
<?php
	$this->setLayout('show_block_dimensions');
	echo $this->loadTemplate();
?>
<!-- EO DIMENSIONS -->
		<br />
<!-- CHARACTERISTICS -->
<?php
	if($this->params->get('characteristic_display') != 'list') {
		$this->setLayout('show_block_characteristic');
		echo $this->loadTemplate();
?>
		<br />
<?php } ?>
<!-- EO CHARACTERISTICS -->
<!-- OPTIONS -->
<?php
	if(hikashop_level(1) && !empty ($this->element->options)) {
?>
		<div id="hikashop_product_options" class="hikashop_product_options"><?php
			$this->setLayout('option');
			echo $this->loadTemplate();
		?></div>
		<br />
<?php
		$form = ',\'hikashop_product_form\'';
		if($this->config->get('redirect_url_after_add_cart', 'stay_if_cart') == 'ask_user') {
?>
		<input type="hidden" name="popup" value="1"/>
<?php
		}
	}
?>
<!-- EO OPTIONS -->
<!-- CUSTOM ITEM FIELDS -->
<?php
	if(!$this->params->get('catalogue') && ($this->config->get('display_add_to_cart_for_free_products') || ($this->config->get('display_add_to_wishlist_for_free_products', 1) && hikashop_level(1) && $this->params->get('add_to_wishlist') && $this->config->get('enable_wishlist', 1)) || !empty($this->element->prices))) {
		if(!empty($this->itemFields)) {
			$form = ',\'hikashop_product_form\'';
			if ($this->config->get('redirect_url_after_add_cart', 'stay_if_cart') == 'ask_user') {
?>
		<input type="hidden" name="popup" value="1"/>
<?php
			}
			$this->setLayout('show_block_custom_item');
			echo $this->loadTemplate();
		}
	}
?>
<!-- EO CUSTOM ITEM FIELDS -->
<!-- PRICE WITH OPTIONS -->
<?php
	if($this->params->get('show_price')) {
?>
		<span id="hikashop_product_price_with_options_main" class="hikashop_product_price_with_options_main">
		</span>
<?php
	}
?>
<!-- EO PRICE WITH OPTIONS -->
<!-- ADD TO CART BUTTON -->
<?php
	if(empty($this->element->characteristics) || $this->params->get('characteristic_display') != 'list') {
?>
		<div id="hikashop_product_quantity_main" class="hikashop_product_quantity_main"><?php
			$this->row =& $this->element;
			$this->formName = $form;
			$this->ajax = 'if(hikashopCheckChangeForm(\'item\',\'hikashop_product_form\')){ return hikashopModifyQuantity(\'' . (int)$this->element->product_id . '\',field,1' . $form . ',\'cart\'); } else { return false; }';
			$this->setLayout('quantity');
			echo $this->loadTemplate();
		?></div>
		<div id="hikashop_product_quantity_alt" class="hikashop_product_quantity_main_alt" style="display:none;">
			<?php echo JText::_('ADD_TO_CART_AVAILABLE_AFTER_CHARACTERISTIC_SELECTION'); ?>
		</div>
<?php
	}
?>
<!-- EO ADD TO CART BUTTON -->
<!-- CONTACT US BUTTON -->
		<div id="hikashop_product_contact_main" class="hikashop_product_contact_main"><?php
	$contact = (int)$this->config->get('product_contact', 0);
	if(hikashop_level(1) && ($contact == 2 || ($contact == 1 && !empty($this->element->product_contact)))) {
		$css_button = $this->config->get('css_button', 'hikabtn');
		$attributes = 'class="'.$css_button.'"';
		$fallback_url = hikashop_completeLink('product&task=contact&cid=' . (int)$this->element->product_id . $this->url_itemid);
		$content = JText::_('CONTACT_US_FOR_INFO');

		echo $this->loadHkLayout('button', array( 'attributes' => $attributes, 'content' => $content, 'fallback_url' => $fallback_url));
	}
?>
		</div>
<!-- EO CONTACT US BUTTON -->
<!-- CUSTOM PRODUCT FIELDS -->
<?php
	if(!empty($this->fields)) {
		$this->setLayout('show_block_custom_main');
		echo $this->loadTemplate();
	}
?>
<!-- EO CUSTOM PRODUCT FIELDS -->
<!-- TAGS -->
<?php
	if(HIKASHOP_J30) {
		$this->setLayout('show_block_tags');
		echo $this->loadTemplate();
	}
?>
<!-- EO TAGS -->
<!-- RIGHT END EXTRA DATA -->
<?php if(!empty($this->element->extraData->rightEnd)) { echo implode("\r\n",$this->element->extraData->rightEnd); } ?>
<!-- EO RIGHT END EXTRA DATA -->
<span id="hikashop_product_id_main" class="hikashop_product_id_main">
	<input type="hidden" name="product_id" value="<?php echo (int)$this->element->product_id; ?>" />
</span>
</div>
</div>
<!-- END GRID -->
<div id="hikashop_product_bottom_part" class="hikashop_product_bottom_part">
<!-- BOTTOM BEGIN EXTRA DATA -->
<?php if(!empty($this->element->extraData->bottomBegin)) { echo implode("\r\n",$this->element->extraData->bottomBegin); } ?>
<!-- EO BOTTOM BEGIN EXTRA DATA -->
<!-- DESCRIPTION -->
	<div id="hikashop_product_description_main" class="hikashop_product_description_main" itemprop="description"><?php
		echo JHTML::_('content.prepare',preg_replace('#<hr *id="system-readmore" */>#i','',$this->element->product_description));
	?></div>
<!-- EO DESCRIPTION -->
<!-- MANUFACTURER URL -->
	<span id="hikashop_product_url_main" class="hikashop_product_url_main"><?php
		if(!empty($this->element->product_url)) {
			echo JText::sprintf('MANUFACTURER_URL', '<a href="' . $this->element->product_url . '" target="_blank">' . $this->element->product_url . '</a>');
		}
	?></span>
<!-- EO MANUFACTURER URL -->
<!-- FILES -->
<?php
	$this->setLayout('show_block_product_files');
	echo $this->loadTemplate();
?>
<!-- EO FILES -->
<!-- BOTTOM MIDDLE EXTRA DATA -->
<?php if(!empty($this->element->extraData->bottomMiddle)) { echo implode("\r\n",$this->element->extraData->bottomMiddle); } ?>
<!-- EO BOTTOM MIDDLE EXTRA DATA -->
<!-- BOTTOM END EXTRA DATA -->
<?php if(!empty($this->element->extraData->bottomEnd)) { echo implode("\r\n",$this->element->extraData->bottomEnd); } ?>
<!-- EO BOTTOM END EXTRA DATA -->
</div>
<?php
$this->setLayout('show_microdata');
echo $this->loadTemplate();
?>

Please Log in or Create an account to join the conversation.

  • Posts: 83007
  • Thank you received: 13398
  • MODERATOR
4 months 2 days ago #362712

Hi,

That's indeed the default code of the view file. And I can see the microdata information tags and attributes in there.
However, I still don't see them if I look on a product details page on your website.
That should not be possible, unless another extension process the HTML to remove them.
I can see that you're using 4SEO. It might be linked to that.
Could you try temporarily deactivating it ?

Please Log in or Create an account to join the conversation.

  • Posts: 130
  • Thank you received: 6
4 months 2 days ago #362723

From 4SEO team:

4SEO would not do anything about microdata. 4SEO is an SEO product, and any structured data it outputs is in json-ld, the standard for SEO use. After that, any structured data in the page is from Hikashop.

Last edit: 4 months 2 days ago by dklbwf.

Please Log in or Create an account to join the conversation.

  • Posts: 83007
  • Thank you received: 13398
  • MODERATOR
4 months 2 days ago #362724

Hi,

Then, it could be caused by another extension.

Could you try deactivating the plugins of the group 'system' one by one and check if it's helps?

Note also that when you check the debugger you need to make sure it refreshes it's cache. Otherwise, the report would just be based on the old version of the page.
The best is to actually directly look at the HTML of the page with your browser inspector.
You can compare the HTML with the one of a product page of our démo website. You'll see there the méta tags and attributes for the structured data.

Please Log in or Create an account to join the conversation.

Time to create page: 0.080 seconds
Powered by Kunena Forum
