Show big picture on mouse hover

  • Posts: 7
  • Thank you received: 0
12 years 5 months ago #49351

Dear Support,
I was wondering, is there a way to show the big (original size) image of a thumbnail with my mouse hovering over it on the products listing page?
I'm asking only, because my site will have many products, and going into all of them just so the buyer can look at the big picture seems like a hassle.

Thank you for the reply in advance.

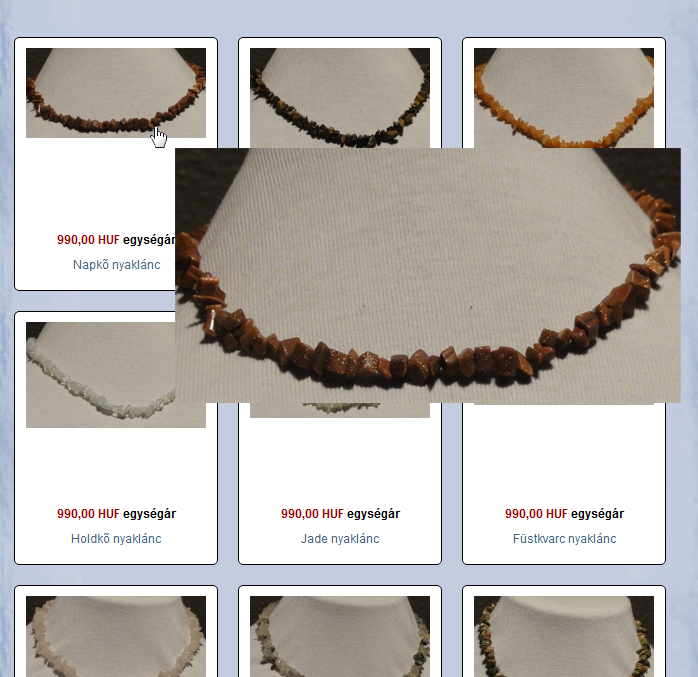

I've made this example with paint:

Attachments:

Please Log in or Create an account to join the conversation.

  • Posts: 82723
  • Thank you received: 13338
  • MODERATOR
12 years 5 months ago #49421

Hi,

It's possible with some code modifications.

Here is an example of such modifications on the product page:
www.hikashop.com/en/forum/4-how-to/42708...-product-images.html

For the listing, it's the same kind of modification that you need to do, change :

<a href="<?php echo $link;?>" title="<?php echo $this->escape($this->row->product_name); ?>">
	<?php }
		echo $this->image->display(@$this->row->file_path,false,$this->escape($this->row->file_name), '' , '' , $this->image->main_thumbnail_x,  $this->image->main_thumbnail_y);
	if($this->params->get('link_to_product_page',1)){ ?>
		</a>
to
	<?php
		echo $this->image->display(@$this->row->file_path,true,$this->escape($this->row->file_name), '' , ' onmouseover="SqueezeBox.fromElement(this,{parse: \'rel\'});return false;"' , $this->image->main_thumbnail_x,  $this->image->main_thumbnail_y);
?>
but in the file "listing_img_title" of the view "product".

The following user(s) said Thank You: kylx

Please Log in or Create an account to join the conversation.

  • Posts: 7
  • Thank you received: 0
12 years 5 months ago #49480

worked like a charm, thank you very much! B)

Please Log in or Create an account to join the conversation.

  • Posts: 7
  • Thank you received: 0
12 years 5 months ago #49491

Info for other users:
I tried the mouse hover, and... well:
Instead of mouse hover I advice the other users, who wish to do the same thing, to use "onmouseclick" instead of "onmouseover", because it can be kinda "brain damaging" :laugh:

Last edit: 12 years 5 months ago by kylx.

Please Log in or Create an account to join the conversation.

  • Posts: 179
  • Thank you received: 17
12 years 5 months ago #49536

I did the onmouseover thing on my products, and found out it was very annoying for it to pop up all the time, it also drove my manager mad so took it off quick, might be worth considering sometimes you really dont want things popping up in your face !! ;)

Please Log in or Create an account to join the conversation.

  • Posts: 46
  • Thank you received: 7
11 years 11 months ago #76916

Hello!

I too, have a client who wants images in the products listing page to enlarge on mouseover. (Like this website: uk.farnell.com/jsp/search/browse.jsp?N=2...prevNValues%3D203450 )

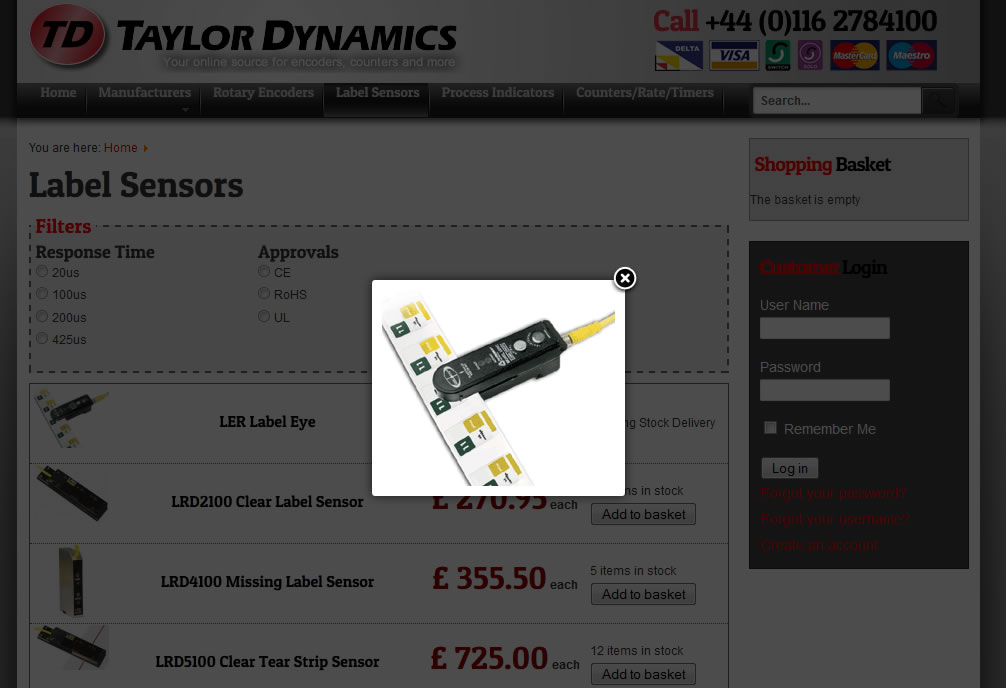

I've added the code you suggested to the View > Listing_table. This works on hover, but opens the image in a shadowbox style view which then has to be closed using the X. I've added a screengrab showing this.

Can you advise?

Many thanks!

Attachments:

Please Log in or Create an account to join the conversation.

  • Posts: 26150
  • Thank you received: 4026
  • MODERATOR
11 years 11 months ago #77092

Hi,

The code that Nicolas gave was to open the Joomla popup window.
There is no library in Joomla or HikaShop to do the magnify like the screenshot. But some javascript libraries exists and can do it.
So, the code was just a base of idea, a proof of concept.

Best regards,


Jerome - Obsidev.com
HikaMarket & HikaSerial developer / HikaShop core dev team.

Also helping the HikaShop support team when having some time or couldn't sleep.
By the way, do not send me private message, use the "contact us" form instead.
The following user(s) said Thank You: lcoombes

Please Log in or Create an account to join the conversation.

  • Posts: 46
  • Thank you received: 7
11 years 11 months ago #77432

Thanks Jerome. Unfortunately, my javascript skills aren't up to much! :S

Will have a look around the web and see if I can find a solution.

All the best - Leo

Please Log in or Create an account to join the conversation.

  • Posts: 46
  • Thank you received: 7
11 years 11 months ago #77454

Right. I've worked out some sort of solution...
This post helped me:
www.hikashop.com/en/forum/4-how-to/1654-...e-zoom.html?start=20

First, I installed Magic Zoom:
www.magictoolbox.com/magiczoom/modules/joomla/

It was published in the header.

Then I edited the display > View > Product / listing_table

I changed this line:

<a href="<?php echo $link;?>" title="<?php echo $this->escape($this->row->product_name); ?>">

to this:
<a href="/media/com_hikashop/upload/<?php echo ($this->row->file_path); ?>"  class="MagicZoom"> title="<?php echo $this->escape($this->row->product_name); ?>">

Hope this helps others a bit!

The following user(s) said Thank You: Jerome

Please Log in or Create an account to join the conversation.

  • Posts: 34
  • Thank you received: 1
10 years 11 months ago #131669

Hi, i'm using/working with HikaShop Business on a client site.
I tried above and other several topics on this forum, unfortunately i can't achieve this yet.

I want to show Big Image (may be with desired size eg. 400px*400px) with the item title and price in the bottom ON MOUSE HOVER (not in popup or after click)
here is the good example exactly what we want,

http://themeforest.net/category/cms-themes/joomla

when you will hover mouse on the category product images it will show the big image with details.

Here is the code in listing_table.php under 'product' folder
<tr>
					<?php if($this->config->get('thumbnail')){ ?>
						<td class="hikashop_product_image_row">
							<div style="height:<?php echo $divHeight;?>px;text-align:center;clear:both;" class="hikashop_product_image">
								<div style="position:relative;text-align:center;clear:both;width:<?php echo $divWidth;?>px;margin: auto;" class="hikashop_product_image_subdiv">
								<?php if($this->params->get('link_to_product_page',1)){ ?>
									<a href="<?php echo $link;?>" title="<?php echo $this->escape($this->row->product_name); ?>">
								<?php }
									echo $this->image->display(@$this->row->file_path,false,$this->escape($this->row->file_name),"","", $width ,$height);
									$main_thumb_x = $this->image->main_thumbnail_x;
									$main_thumb_y = $this->image->main_thumbnail_y;
									if($this->params->get('display_badges',1)){
										$this->classbadge->placeBadges($this->image, $this->row->badges, -10, 0);
									}
									$this->image->main_thumbnail_x = $main_thumb_x;
									$this->image->main_thumbnail_y = $main_thumb_y;

								if($this->params->get('link_to_product_page',1)){ ?>
									</a>
								<?php } ?>
								</div>
							</div>
						</td>

You help appreciated.

Thank

Please Log in or Create an account to join the conversation.

  • Posts: 34
  • Thank you received: 1
10 years 11 months ago #131704

I'm using Joomla 3.1.5 and HikaShop Business latest version.
Also when i tried above code it's not working like that/first topic picture, it's opening with popup modal.

Thanks and waiting for help.

Please Log in or Create an account to join the conversation.

  • Posts: 82723
  • Thank you received: 13338
  • MODERATOR
10 years 11 months ago #131708

The modifications we proposed at the beginning of this thread is to open the image on mouse hover in a modal popup. So it's doing what it should.

We never published code to display it differently as it would actually quite complex. You would have to include a special library to handle the display of images like that. I think that the simplest would be to talk with a zoom system for HikaShop and see with them if they could help you do it for the listing page and not only the product page. For example:
www.magictoolbox.com/hikashop/
Or maybe you could see that with a third party developer like polishedgeek.com

Please Log in or Create an account to join the conversation.

  • Posts: 96
  • Thank you received: 1
8 years 7 months ago #232681

Hi,

I look for how to enlarge image onmouseover in products listing.
I seen it's possible in the previous versions of Hikashop with some code modifications in listing_img_title.

Have you a similar solution with Hikashop Business 2.6.1 / Joomla 3.4.8 ?

Thank's

Please Log in or Create an account to join the conversation.

  • Posts: 82723
  • Thank you received: 13338
  • MODERATOR
8 years 7 months ago #232691

Hi,

Try replacing the code:

$img = $this->image->getThumbnail(@$this->row->file_path, array('width' => $this->image->main_thumbnail_x, 'height' => $this->image->main_thumbnail_y), $image_options);
			if($img->success) {
				echo '<img class="hikashop_product_listing_image" title="'.$this->escape(@$this->row->file_description).'" alt="'.$this->escape(@$this->row->file_name).'" src="'.$img->url.'"/>';
			}
with the code:
		echo $this->image->display(@$this->row->file_path,true,$this->escape($this->row->file_name), '' , ' onmouseover="SqueezeBox.fromElement(this,{parse: \'rel\'});return false;"' , $this->image->main_thumbnail_x,  $this->image->main_thumbnail_y);
that we provided previously. It should still work fine with the new versions of HikaShop as long as mootools's modal library is loaded on the page.

Last edit: 8 years 7 months ago by nicolas.

Please Log in or Create an account to join the conversation.

  • Posts: 23
  • Thank you received: 0
8 years 7 months ago #234172

Hi guys,

Where is this code located? Is it in the CSS file or somewhere else?

Thanks

Please Log in or Create an account to join the conversation.

  • Posts: 82723
  • Thank you received: 13338
  • MODERATOR
8 years 7 months ago #234173

Hi,

It's in the file "listing_img_title" of the view "product" that you can edit via the menu Display>views.

The following user(s) said Thank You: aran.gibbs

Please Log in or Create an account to join the conversation.
