Trouble with characteristics selection

  • Posts: 9
  • Thank you received: 0
11 years 5 months ago #113874

Hello there,

I'm currently working on a project for client. I am in need of some help as I can't figure out what is causing this behaviour.

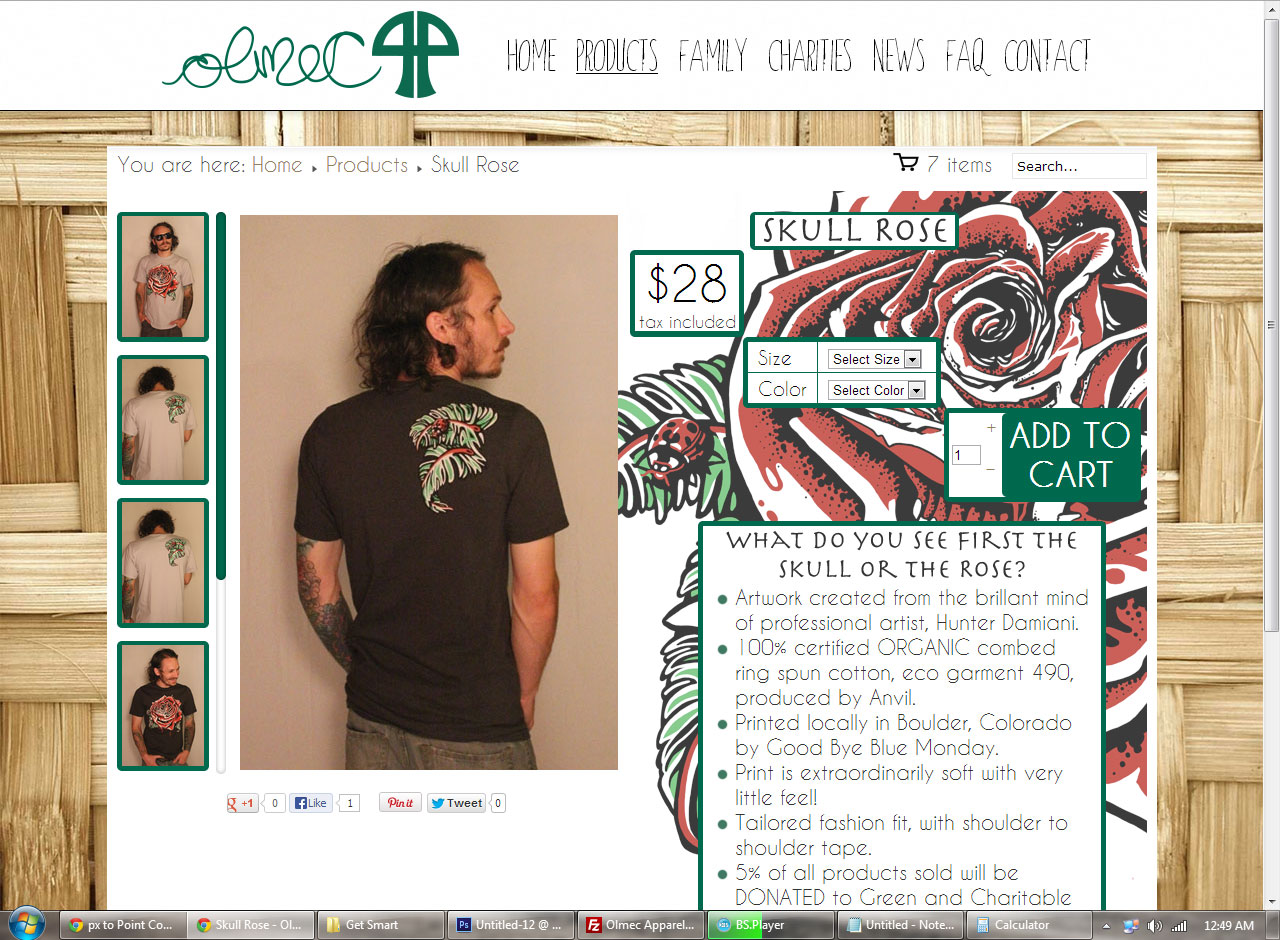

Here a screenshot of how the product page looks when you initially load the page:

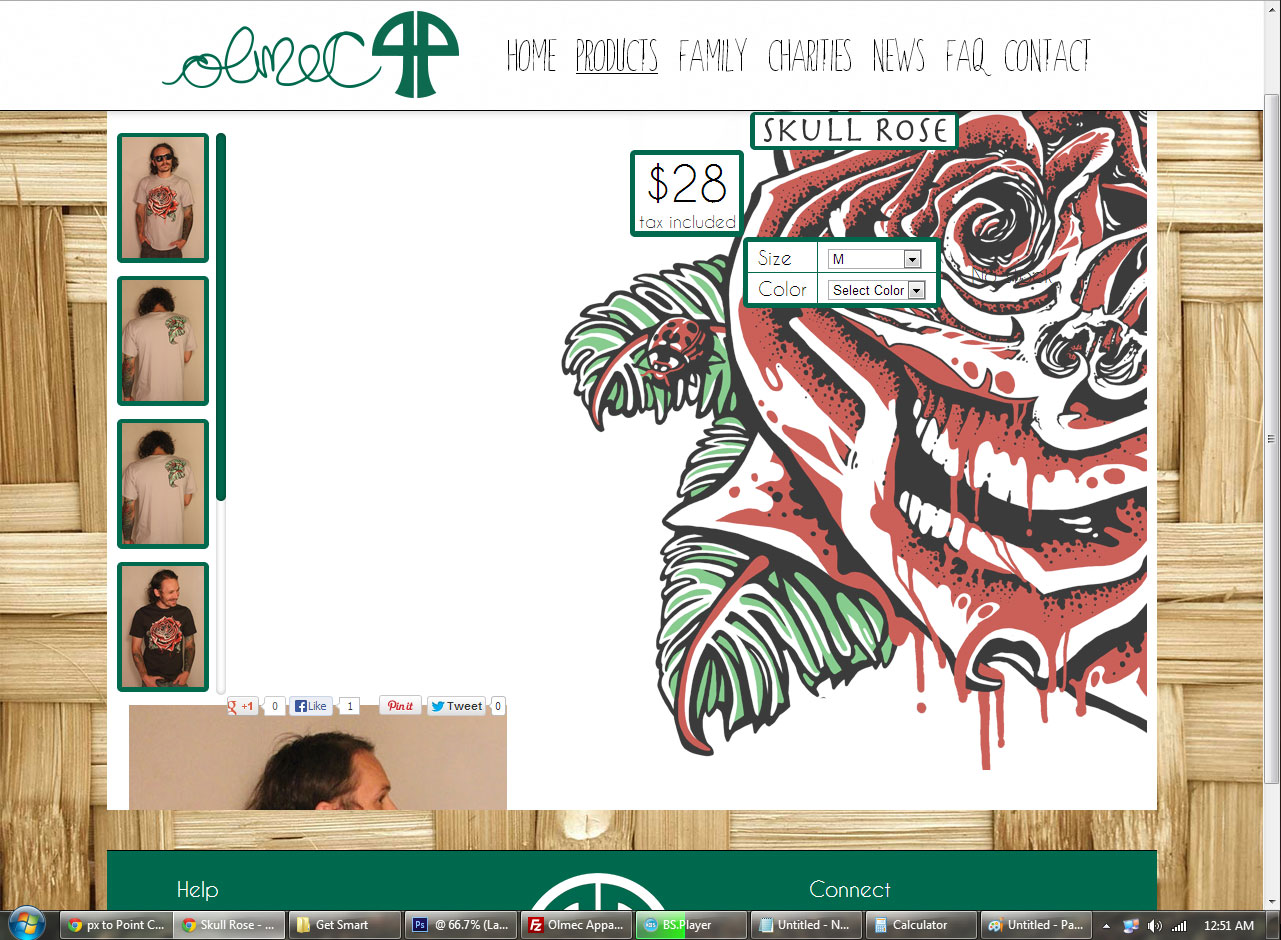

This is what happens when you select a characteristic from the dropdowns:

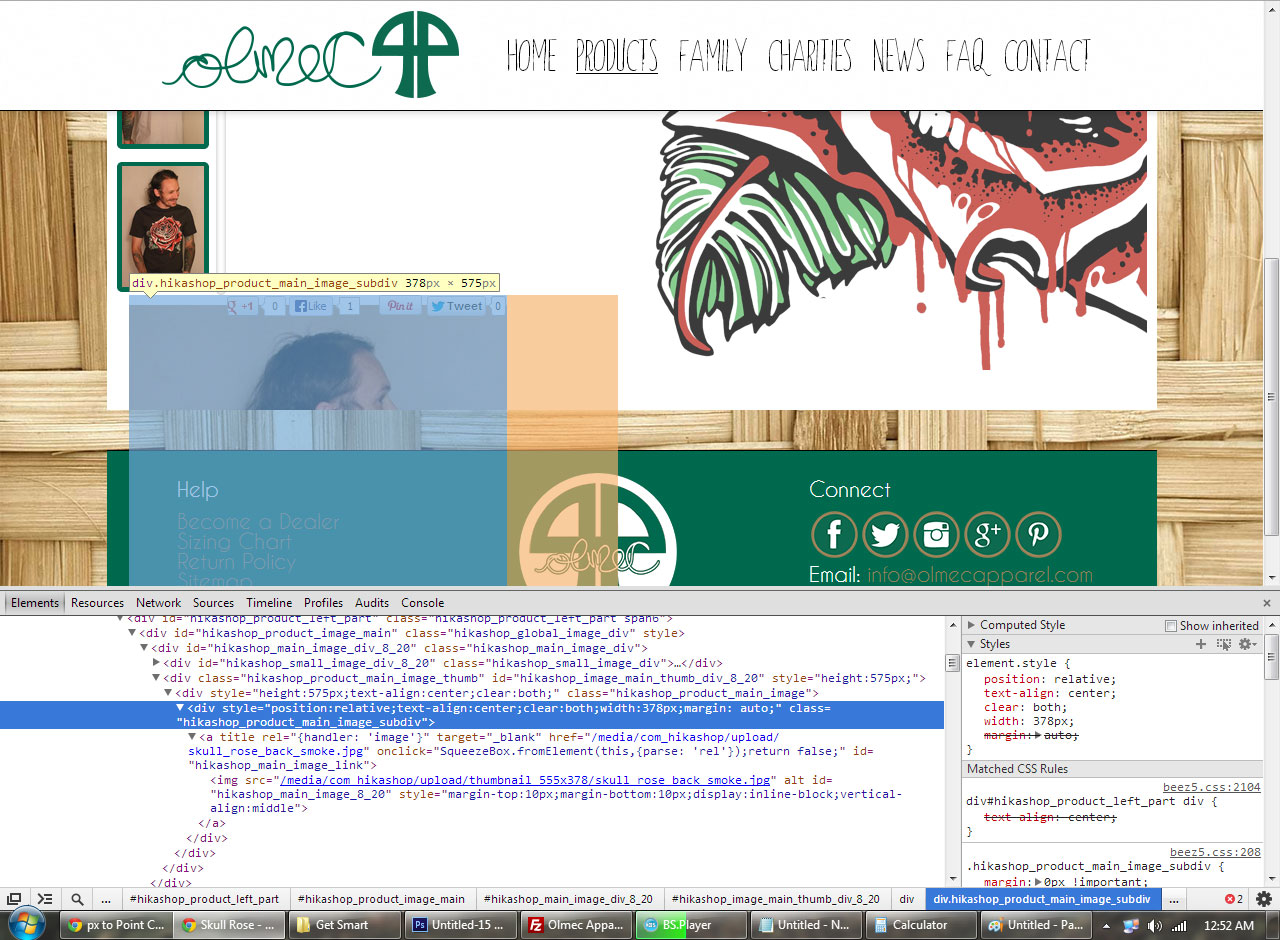

This is some information of how it is behaving in in chrome:


As you can see in the third picture it is changing the width of the hikashop_product_main_image_thumb div from 378px wide to 489px. There is a large margin added to the left side of the hikashop_product_main_image_subdiv div but I have the margin in the CSS set to
margin: 0px !important;

I have modified the show_block_image to wrap each thumbnail in a div with the class of thumbnail_wrapper and to place a <br> after each thumbnail so that they sit one per line.
<?php
/**
 * @package  HikaShop for Joomla!
 * @version  2.1.1
 * @author  hikashop.com
 * @copyright  (C) 2010-2012 HIKARI SOFTWARE. All rights reserved.
 * @license  GNU/GPLv3 http://www.gnu.org/licenses/gpl-3.0.html
 */
defined('_JEXEC') or die('Restricted access');
?><?php
$variant_name = '';
$variant_main = '_main';
$display_mode = '';
if(!empty($this->variant_name)) {
  $variant_name = $this->variant_name;
  if(substr($variant_name, 0, 1) != '_')
    $variant_name = '_' . $variant_name;
  $variant_main = $variant_name;
  $display_mode = 'display:none;';
}
?><div id="hikashop_product_image<?php echo $variant_main;?>" class="hikashop_global_image_div" style="<?php echo $display_mode;?>">
  <div id="hikashop_main_image_div<?php echo $variant_name;?>" class="hikashop_main_image_div">
    <?php
      if(!empty ($this->element->images)){
        $image = reset($this->element->images);
      }
      $height = $this->config->get('product_image_y');
      $width = $this->config->get('product_image_x');
      if(empty($height)) $height=$this->config->get('thumbnail_y');
      if(empty($width)) $width=$this->config->get('thumbnail_x');
      $divWidth=$width;
      $divHeight=$height;
      $this->image->checkSize($divWidth,$divHeight,$image);

      if (!$this->config->get('thumbnail')) {
        if(!empty ($this->element->images)){
          echo '<img src="' . $this->image->uploadFolder_url . $image->file_path . '" alt="' . $image->file_name . '" id="hikashop_main_image"  />';
        }
      } else {
        $style = '';
        if (!empty ($this->element->images) && count($this->element->images) > 1) {
          if (!empty($height)) {
            $style = ' style="height:' . ($height + 20) . 'px;"';
          }
        }
        $variant_name='';
        if(isset($this->variant_name)){
          $variant_name=$this->variant_name;
        }

        ?>
        <div id="hikashop_small_image_div<?php echo $variant_name;?>" class="hikashop_small_image_div">
      <?php
      if (!empty ($this->element->images) && count($this->element->images) > 1) {
        foreach ($this->element->images as $image) {
          echo '<div class="thumbnail_wrapper">';
          echo $this->image->display($image->file_path, 'hikashop_main_image'.$variant_name, $image->file_name, 'class="hikashop_child_image"','', $width,  $height);
          echo "<br>";
          echo "</div>";
        }
      }

    ?>
  </div>
        <div class="hikashop_product_main_image_thumb" id="hikashop_image_main_thumb_div<?php echo $variant_name;?>" <?php echo $style;?> >
          <div style="<?php if(!empty($divHeight)){ echo 'height:'.($divHeight+20).'px;'; } ?>text-align:center;clear:both;" class="hikashop_product_main_image">
            <div style="position:relative;text-align:center;clear:both;width:<?php echo $divWidth;?>px;margin: auto;" class="hikashop_product_main_image_subdiv">
            <?php
              echo $this->image->display(@$image->file_path,true,@$image->file_name,'id="hikashop_main_image'.$variant_name.'" style="margin-top:10px;margin-bottom:10px;display:inline-block;vertical-align:middle"','id="hikashop_main_image_link"', $width,  $height);
              if(!empty($this->element->badges))
                $this->classbadge->placeBadges($this->image, $this->element->badges, '0', '0');
            ?>
            </div>
          </div>
        </div>
      <?php
      }
      ?>
      </div>
</div>

I'm assuming that the hikashopUpdateVariant javascript function might have something to do with this?

If anyone wants a login to the website so that they can test it and provide me with feedback just let me know!

Any help here is much appreciated. I can't figure out what exactly is causing the margin and the change in width in the main product image.

Thank you for any help

Attachments:
Last edit: 11 years 5 months ago by midgetwithamatch.

Please Log in or Create an account to join the conversation.

  • Posts: 83041
  • Thank you received: 13405
  • MODERATOR
11 years 5 months ago #114006

Hi,

Hard to say precisely what to do as the page is heavily customized (and the issue apparently comes from that customization since it works fine by default).
We would need to look directly at the CSS/HTML of the page to see what's going on, so yes, we'll need an access.

The following user(s) said Thank You: midgetwithamatch

Please Log in or Create an account to join the conversation.

  • Posts: 9
  • Thank you received: 0
11 years 5 months ago #114021

Thank you nicolas for the help!

This is the login info for anyone wanting to help:
URL: www.olmecapparel.com
User: hika_test
Password: thankyouforhelping

If you need me to post any modified views just let me know.

Last edit: 11 years 5 months ago by midgetwithamatch.

Please Log in or Create an account to join the conversation.

  • Posts: 83041
  • Thank you received: 13405
  • MODERATOR
11 years 5 months ago #114173

Mmm. I don't see why you didn't add a float:left; to the class hikashop_product_main_image_thumb
That should fix that problem as it should actually display wrongly all the time without it.

The following user(s) said Thank You: midgetwithamatch

Please Log in or Create an account to join the conversation.

  • Posts: 9
  • Thank you received: 0
11 years 5 months ago #114223

nicolas my friend you are the man. Something so simple!!!! Ugh been honestly reading through the javascript and the front end views line by line trying to figure out what could be causing that behaviour. I just went in and threw float:right to the .hikashop_product_main_image_thumb and immediately started behaving properly.

Thank you so much.
